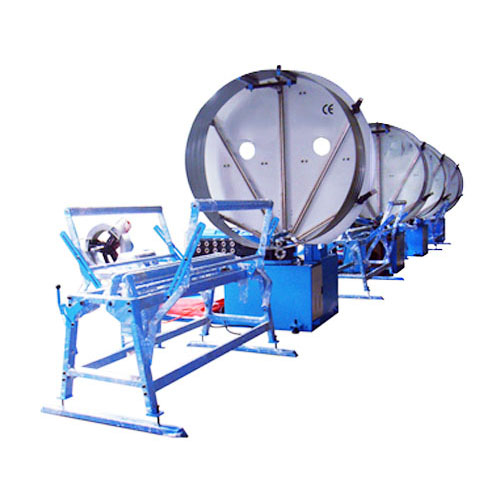

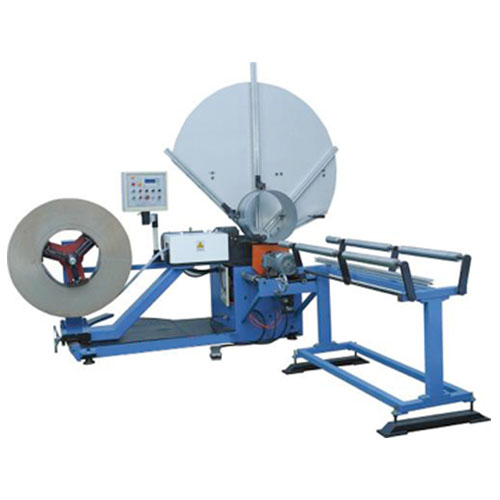

Spiral Tubeformer BTF-I

Spiral Tubeformer BTF-I

Delivery terms:EXW, FCA, FAS, FOB, CFR, CIF, CPT, CIP, DAT, DAP, DDP

Payment:30% down payment by T/T,the balance down before shipment.

Lead time:witin 10-35 days after receiving down payment.

Guarantee:within one year since date of B/L.


  • Overview
  • Parameter
  • Inquiry
  • Related Products

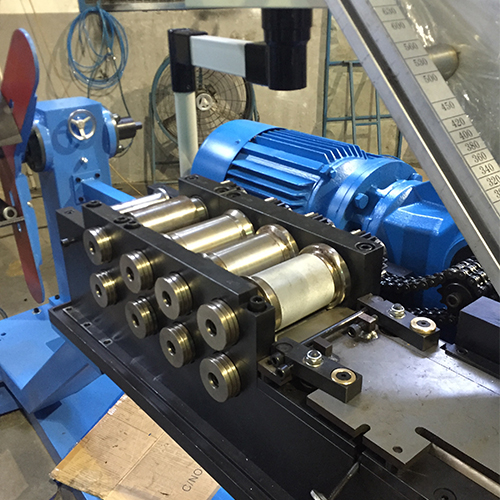

The forming die is made of spring steel. Easy to change and adjust,
Induction cutting system controls the length of the pipe.
PLC control, saw blade cutting and molding speed synchronization.
Meet the CE standards of European and American markets: CE certificate.

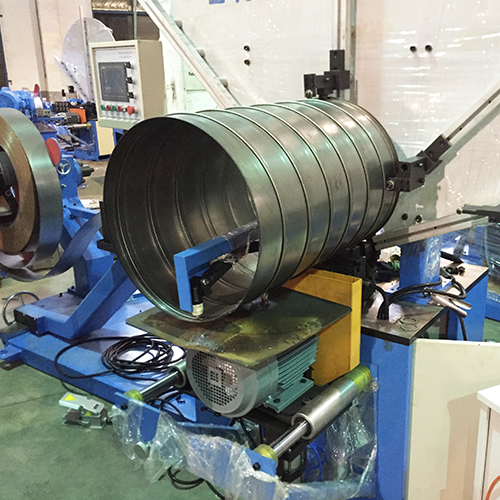

Spiral tubeformer is very widely used in spiral HVAC and sheet metal industry. The spiral duct machine working by adjusting the steel strip and replacing the steel strips of different sizes, it is possible to produce spiral tubes of different sizes, which are easy to change and adjust, and the joints are tightly connected and the performance is stable.

Technical Data

Diameter¢80 mm – ¢1500mm
Thickness Of Sheet MetalGalvanized steel0.4 -1.2mm
Stainless steel0.4-0.8mm
Width Of Sheet MetalStandard 137mm
Feeding Speed1-38m/min
Lock SeamOutside lock seam, on the inside on request
PowerMainframe5.5Kw
Cutting power4Kw
Weight1708kg
Dimension2700 mm×1560 mm×1950mm

Relative Products

To meet the special requirements of our customers, we offer the model BTF I 1500C with a maximum working thickness of 2.0 mm.
