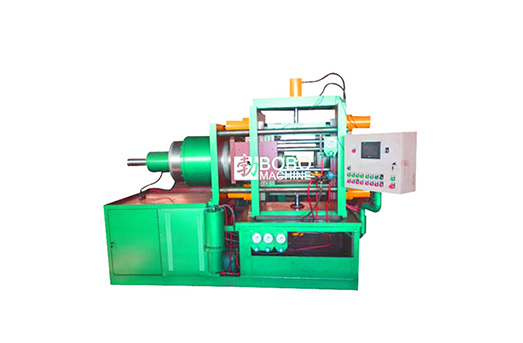

Metal Bellows Forming Making Machine For Expansion Joint Send To The UK

Nov 18, 2022 21

Summary

This machine is designed for the special use of bellows multi - wave one - time automatic forming machine. Emulsion as the medium of the wave, using the principle of high pressure hydraulic bulging, with a specially designed hydraulic forming system and special forming die, through the PLC control, automatic separation of die sheet spacing, the special material of the tube billet one-time automatic processing forming. Single operation, a forming, fast speed, high efficiency, forming a workpiece about 4 minutes. Manual filling, exhaust, automatic drum wave, forming.


Size Range

up to DN300

Pitch Distance

5-8mm, Adjustable

Forming Method

Dies/Moulds

Thickness

3*0.5mm

Height of Convolution

6-8mm, Adjustable

Forming Medium

Water

length

<800mm
