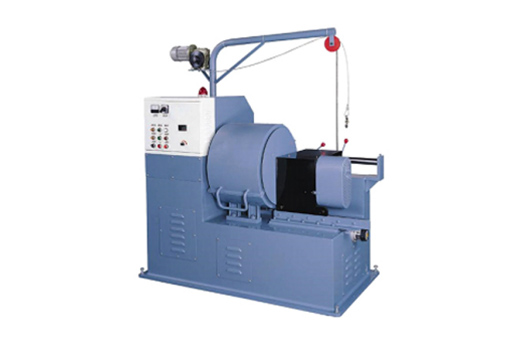

Auto Winder Machine for Cable Outer Casing Send to Turkey

Nov 04, 2022 16

Product Description


The auto winder machine for cable outer casing is used to produce flexible hose continuously. The outer casing hose is widely used for control cable, such as brake cable, clutch cable, throttle cable, etc.The inner plastic hose can be optional for different purpose.

Features of auto winder machine for cable outer casing

Equipped with inverter from Mitsubishi, Japan for main motor speed adjustment.

Wire and inner hose feeding device has function option as “Manual” and “Automatic”

Equipped with auto alarm and emergency stop function if no wire / inner hose feeding

Equipped with electric crane for wire bobbin lifting up and down.


Main technical data of auto winder machine for cable outer casing

Model:

FX-I

Model:

FX-2

Flexible hose diameter:

OD 4-6mm

Flexible hose diameter:

OD 7-11mm

Forming speed:

2.2m/min for hose

Forming speed:

2.6m/min for hose

Crane capacity:

120kg

Crane capacity:

120kg

Motor power:

3.0kw, 0-50Hz, 3Phase. 1420rpm

Motor power:

3.75kw, 0-50Hz, 3Phase. 1420rpm

Dimension:

2200x900x2000mm

Dimension:

2200x900x2000mm

Weight:

1300kg

Weight:

1500kg
