Aluminum Flexible Air Duct Making Forming Machine Send to India

Sep 30, 2022 12

Product Description

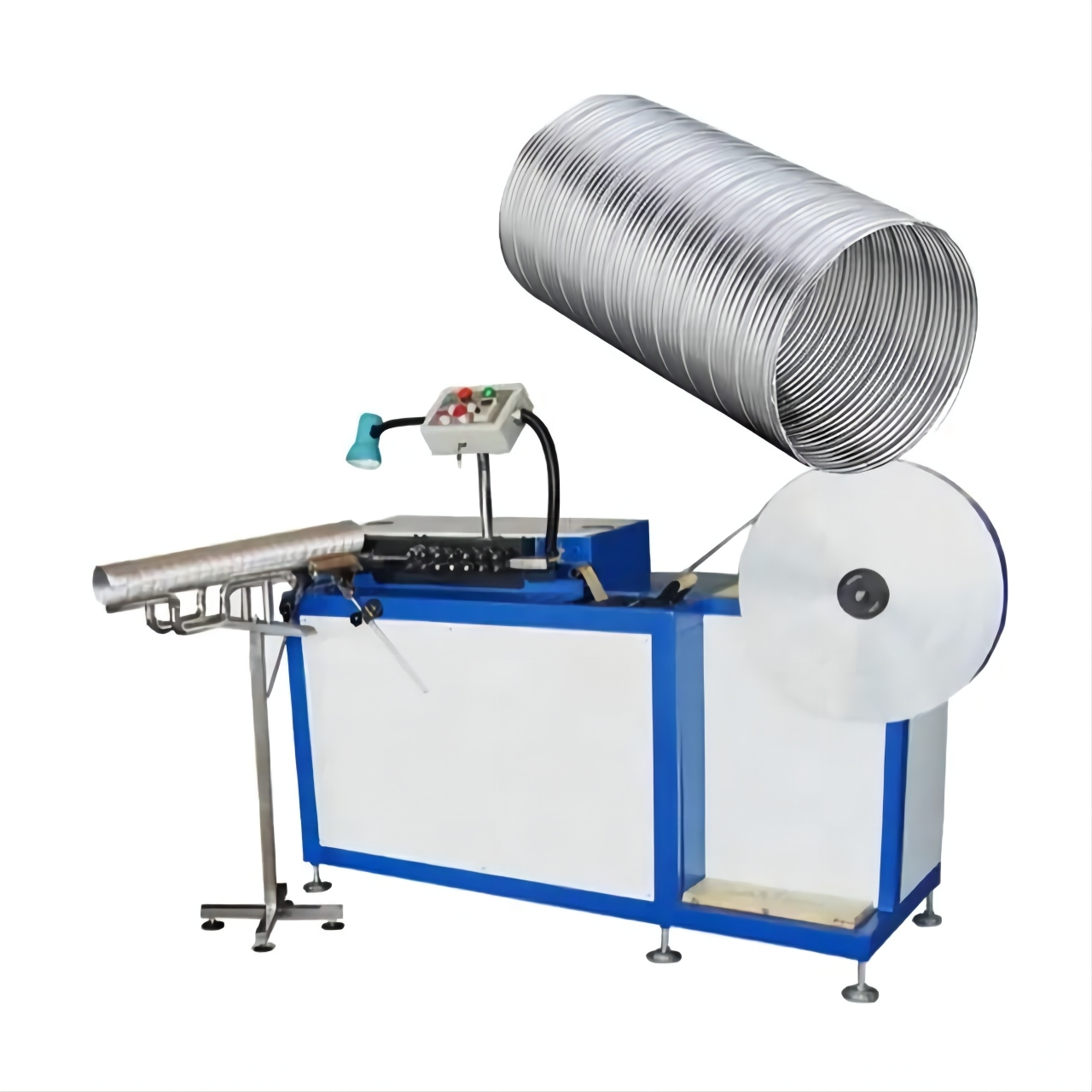

TAluminum flexible air duct manufacturers machine

The Aluminum flexible air duct manufacturers machine is mainly used to produce the flexible air duct from aluminum strip by spiral lock forming process. The suitable material cab be aluminum foil or stainless steel strip, both single and double layer will be ok.

Feature of Aluminum flexible air duct manufacturers machine

  • Automatic forming, cutting and compressing process controlled by PLC.

  • Suitable material for both aluminum foil and stainless steel strip.

  • Double layer aluminum foil will be available by our speical design

Main Technical data of Aluminum flexible air duct manufacturers machine

1Duct Diameter60-300mm (80-450mm)
2Duct lengthEndless
3Aluminum strip size0.05-0.15mm thick/40-55mm wide
4Forming speed1-5m/min
5Main motor power1.5KW
6Dimension1200 x 550 x 1200 mm
7Weight850KG
