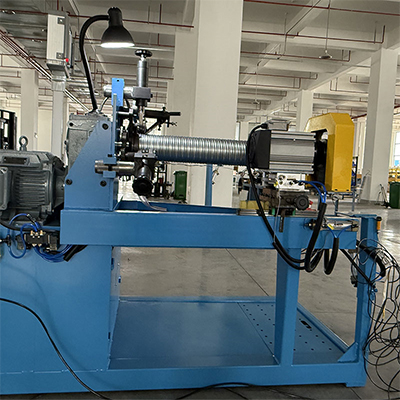

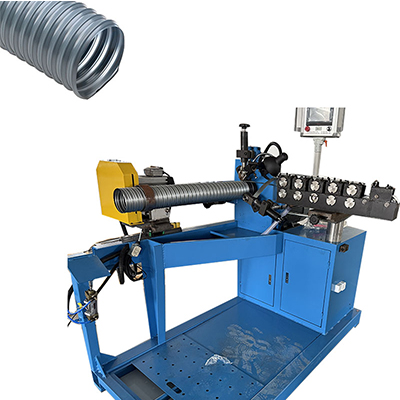

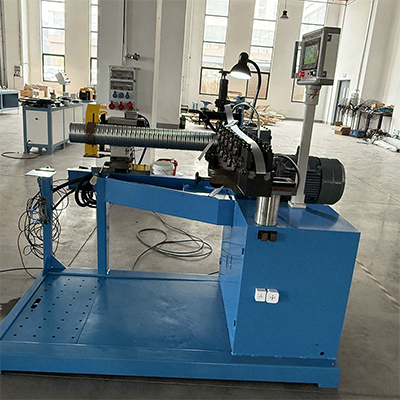

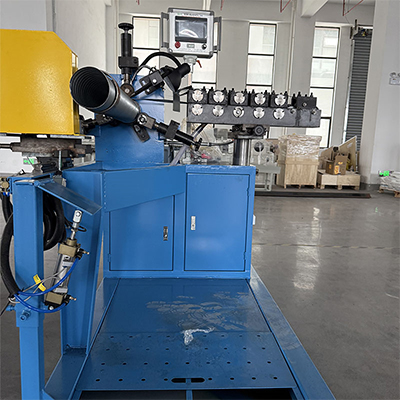

Spiral Corrugated Posttension Pipe Machine BPT-135/150

Spiral Corrugated Posttension Pipe Machine BPT-135/150

Delivery terms:EXW, FCA, FAS, FOB, CFR, CIF, CPT, CIP, DAT, DAP, DDP

Payment:30% down payment by T/T,the balance down before shipment.

Lead time:witin 10-35 days after receiving down payment.

Guarantee:within one year since date of B/L.


  • Overview
  • Parameter
  • Inquiry
  • Related Products

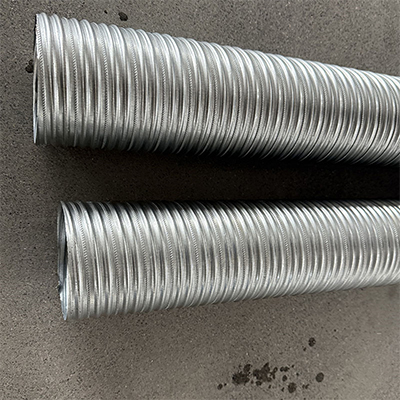

These posttension pipe machines are special designed for producing round & flat corrugated pipes used in expressway, airport, bridge, large-span post-tension concrete project. It is suitable for both indoor and site work. It is of high speed and better material utilization.

Model:BPT-135/150
Diameter range:35~135mm (150mmenlarged)
Suitable material:galvanized steel strip, 0.2~0.3mm, 36mmwide
Pitch of spiral:28mm
Seam type:double lockseam
Strip feeding speed:0- 13 m/min, adjustable byinverter
Motor:380V, 3 phases,50Hz
Main motor:5.5kW
Cutting motor:2.2kW
Lubricant motor:0.125kW
Total weight:650kg
Dimension:1300 x 1800 x 1300mm
